ECOSYS P4140dn

This compact A3 black and white printer offers an expandable paper capacity of up to 6 paper trays for flexible paper handling. Plus this device knows exactly how to impress with comprehensive standard security features for optional SSD and ECOSYS long-life technology.

Double-sided print.
Toner save mode.
Beneficial for the environment with long-life components and low energy consumption.
Print using direct Wi-Fi (optional).

Engine speed

Up to 40/22 pages A4/A3 per minute Duplex print speed: Up to 28 / 11 pages A4/A3 per minute

Resolution

1,200 × 1,200 dpi

Time to first print

Approx. 6.3 seconds or less

Dimensions (W x D x H)

477 × 410 × 343 mm including projections

Two women working on computers, looking at each other

Multifunctional products for day-to-day tasks

Highly regarded by the industry and highly rated by numerous testing organisations, KYOCERA boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant colour, to match the needs of any business.

Woman on the phone, looking at printed documents

A3 and A4 printers for all needs

KYOCERA’s A3 and A4 printers offer all the sophisticated paper finishing options that businesses require in a compact device that consumes fewer properties in manufacture, and gives rise to less waste to help make offices more efficient and more environmentally friendly at the same.

Two colleagues in discussion, surrounded by plants

ECOSYS: The sustainable solution

ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

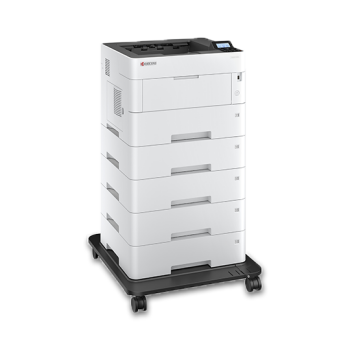

ecosys-p4140dn-spec

General type
Monochrome printer for A3 format

Engine speed
Up to 40/22 pages A4/A3 per minute Duplex print speed: Up to 28 / 11 pages A4/A3 per minute

Warm-up time
Approx. 18 seconds or less

Power consumption
Print Mode: 632 W Ready Mode: 11 W Sleep Mode: 0.5 W

Warranty
2YR Onsite

Input capacity
Multi-purpose tray: 100 sheets, 60–220 g/m2, A3, B4, A4R, A4, A5, A6R, B5, Letter, LetterR, Legal, Ledger, Custom (70 x 148 mm to 297 x 1220 mm); Universal paper cassette: 500 sheets, 60–120 g/m2, A3, B4, A4R, A4, A5, A6R, B5, Letter, LetterR, Legal, Ledger, Custom (105 × 148 mm to 297 × 432 mm).

Max. input capacity with options
2,600 sheets

Duplex unit
Duplex as standard supports 60–120 g/m2, A3–A5R

Max. output capacity
Standard 500 sheets face-down with paper full sensor, face-up 250 sheets with PT-4100

Processor
Coretex-A9 1,2 GHz

Fonts
93 outline fonts (PCL), 136 fonts (KPDL 3), 8 fonts (Windows Vista), 1 Bitmap font, 79 barcodes (e. g. EAN8, EAN13, EAN128) with automatic generation of checksums as well as support of two-dimensional barcodes PDF-417 under PRESCRIBE (PCL and other barcodes available as an option)

Features
Toner save mode, N-Up printing (multiple pages on one sheet), Duplex print (double side printing), Proof and hold for multiple set printing, Poster print (multiple sheets for one page), Banner print (up to 297 x 1220 mm), e-mail printing, Internet-Printing IPP 1.0, WSD print.

Applicable OS
All current Windows operating systems, MAC OS X Version 10.9 or higher, Unix, Linux, as well as other operating systems on request

Article Type

Capacity in sheets

Dimensions (W x D x H)

Paper size

PF-4110

Article Type

Paper feeder

Capacity in sheets

500 sheets

Dimensions (W x D x H)

555 x 501 x 220 mm

Paper size

1 × 500 sheets; 60–120 g/m2; A3, B4, A4-R, A4, A5, B5, Letter, Letter-R, Legal, Ledger, Custom (148 × 210 mm to 297 × 432 mm)

Paper feeder

500 sheets

555 x 501 x 220 mm

1 × 500 sheets; 60–120 g/m2; A3, B4, A4-R, A4, A5, B5, Letter, Letter-R, Legal, Ledger, Custom (148 × 210 mm to 297 × 432 mm)

PT-4100

Article Type

Bulk Paper tray

Capacity in sheets

250 sheets face-up output tray

Dimensions (W x D x H)

(W x D x H): 269 x 360 x 51 mm

Paper size

Bulk Paper tray

250 sheets face-up output tray

(W x D x H): 269 x 360 x 51 mm

TK-7314
Microfine toner black for 15,000 pages A4. Capacity of starter toner is 7,500 pages A4.

CA-3100
Caster stand

Card Authentication Kit (B)
Support for various authentication keys available

HD-6
32 GB for easy document management

HD-7
128 GB SSD hard disc for easy document management

IB-32B
Parallel IEEE1284 interface kit

IB-36
Wireless LAN (802.11b/g/n) with Wi-Fi Direct

IB-50
Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

IB-51
Wireless LAN Interface (802.11b/g/n)

KYOmulticode SD 3
Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

MD3-1024
1,024 MB RAM Expansion

MDDR3-2GB
2,048 MB RAM Expansion

PCL Barcode SD
Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

UG-33
ThinPrint support

USB IC Card Reader + Card Authentication Kit (B)
Support for various authentication keys available
