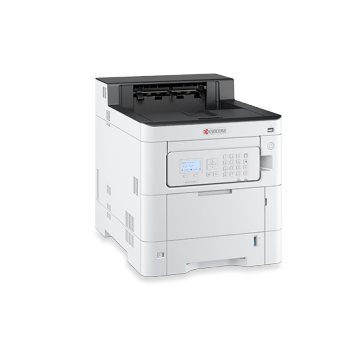

ECOSYS PA4500cx

Built for medium and large work groups, this A4 versatile printer is ideal for businesses searching to take their costs to a minimum while enjoying remarkable productivity and colour-rich output.

Double-sided print.
Data overwrite and encryption, Trusted Platform Module, Secure Boot and Run Time Integrity Check, S/MIME and TLS 1.3
Compact design with full functionality.
Strenghen affinity with Microsoft Universal Print
Optional Trusted Platform Module"

Request a quote

Engine speed

Up to 45 pages A4 per minute in colour and b/w

Resolution

1200 x 1200 dpi (print, at reduced speed)

Dimensions (W x D x H)

480 × 576.5 × 571.5mm

Warranty

2YR Onsite

Two women working on computers, looking at each other

Multifunctional products for day-to-day tasks

Highly regarded by the industry and highly rated by numerous testing organisations, KYOCERA boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant colour, to match the needs of any business.

Woman on the phone, looking at printed documents

A3 and A4 printers for all needs

KYOCERA’s A3 and A4 printers offer all the sophisticated paper finishing options that businesses require in a compact device that consumes fewer properties in manufacture, and gives rise to less waste to help make offices more efficient and more environmentally friendly at the same.

Two colleagues in discussion, surrounded by plants

ECOSYS: The sustainable solution

ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

ecosys pa4500cx

General type
Colour printer for A4 format

Engine speed
Up to 45 pages A4 per minute in colour and b/w

Warm-up time
Approx. 20 seconds or less

Power consumption
Printing: 576.8 W; Ready mode: 11.8 W Sleep-mode: 0.4 W

Warranty
2YR Onsite

Input capacity
Multi-purpose tray: 100 sheets (75 g/m2 equivalent), 110 sheets (64 g/m2 equivalent); 60 – 220 g/m2; A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 140 to 216 x 356 mm), Banner paper up to 1220 mm; Standard universal paper cassette: 550 sheet with 75 g/m2, 600 sheet with 64 g/m2; 60 – 220 g/m2; A4, A5,A6, B5, B6, Letter, Legal, Folio, Custom (105 x 140 to216 x 356 mm)

Max. input capacity with options
Max. input capacity with options: 2,850 sheets with 75 g/m2, 3,110 sheets with 64 g/m2

Duplex unit
Standard duplex unit; 60–163 g/m2; A4(Legal) - A6R(StatementE)

Max. output capacity
500 sheets (Equivalent to 80 g/m2) face down with paper full sensor

Processor
ARM Cortex-A9 Dual core1.2 GHz

Fonts
93 outline fonts (PCL), 93 fonts (KPDL 3), 8 fonts( Windows Vista), 1 Bitmap font 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)

Features
Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, Private Print quick copy, proof and hold, job storage and job management functionality

Applicable OS
All current Windows operating systems, MAC OS X Version 10.8 or higher, Unix, Linux as well as other operating systems on request

Article Type

Capacity in sheets

Dimensions (W x D x H)

Paper size

PF-5150

Article Type

Paper feeder

Capacity in sheets

500 sheets

Dimensions (W x D x H)

(W x D x H): 380 x 410 x 121 mm

Paper size

60 - 120g/m2, A4, A5, B5, Letter, Legal Custom (92 - 216 x 162 - 356 mm

Paper feeder

500 sheets

(W x D x H): 380 x 410 x 121 mm

60 - 120g/m2, A4, A5, B5, Letter, Legal Custom (92 - 216 x 162 - 356 mm

TK-5394K
Average continuous black toner yield 18,000 pages in accordance with ISO/IEC 19798.

TK-5394C
Average continuous cyan toner yield 13,000 pages in accordance with ISO/IEC 19798.

TK-5394M
Average continuous magenta toner yield 13,000 pages in accordance with ISO/IEC 19798.

TK-5394Y
Average continuous yellow toner yield 13,000 pages in accordance with ISO/IEC 19798.

CB-5150B
Wooden cabinet

CB-5150H
Wooden cabinet

CB-5150L
Wooden cabinet

CB-5150S
Metal cabinet

HD-17
64 GB for easy document management

HD-18
256 GB SSD hard disc for easy document management

HD-19
512 GB SSD hard disc for easy document management

IB-37
Wireless Network Interface (USB: 5GHz/2.4GHz)

IB-38
Wireless Network Interface (USB: 2.4GHz)

IB-50
Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

IB-51
Wireless LAN Interface (802.11b/g/n)

KYOmulticode SD 3
Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

MD3-1024
1,024 MB RAM Expansion

PCL Barcode SD
Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

UG-33
ThinPrint support

UG-35
TPM (Trusted Platform Module)

USB IC Card Reader + Card Authentication Kit (B)
Support for various authentication keys available
